SCC Installation

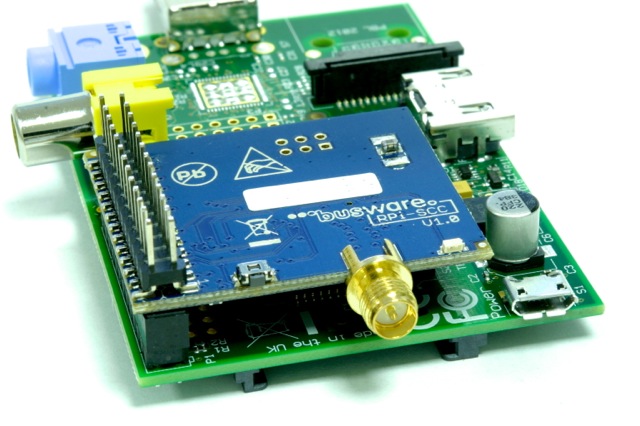

Mounting


Radio interface

The module is shipped with "culfw" installed already!
You need to free-up the serial line used by SCC. Remove any references to ttyAMA0 in:
  • /etc/inittab - comment or delete: T0:23:respawn:/sbin/getty -L ttyAMA0 115200 vt100
  • /boot/cmdline.txt - and reboot!

RPI3 + JESSIE:

add to:
/boot/config.txt
dtoverlay=pi3-miniuart-bt

change:
/boot/cmdline.txt
dwc_otg.lpm_enable=0 console=tty1 root=/dev/mmcblk0p2 rootfstype=ext4 elevator=deadline fsck.repair=yes rootwait

commands to issue:
sudo systemctl stop serial-getty@ttyAMA0.service
sudo systemctl disable serial-getty@ttyAMA0.service
sudo reboot


By default the radio is held in RESET which is connected to GPIO17. You need explicitly pull GPIO17 HIGH to un-reset the radio:
if test ! -d /sys/class/gpio/gpio17; then echo 17 > /sys/class/gpio/export; fi
echo out > /sys/class/gpio/gpio17/direction
echo 1 > /sys/class/gpio/gpio17/value

By doing this the LED@SCC should start blinking.

LOW level at GPIO18 is used to call the (avr109) bootloader. For normal operation leave it untouched or pull HIGH!

The SCC is shipped with "culfw"-firmware flashed and testet.

FHEM

SCC itself and stacking support currently requires latest FHEM-svn revision 5274+ !

after freeing the serial line and un-resetting the radio as descibed above you may add in fhem.cfg:
for a Rapberry Pi:
define SCC CUL /dev/ttyAMA0@38400 1234

for a Banana Pi:
define SCC CUL /dev/ttyS2@38400 1234

If you own more than one SCC you can pile them up and may define them chained like this. Make sure you define attribute rfmode properly:
define SCC1 STACKABLE_CC SCC
attr SCC1 rfmode MAX

define SCC2 STACKABLE_CC SCC1
attr SCC2 rfmode SlowRF

define SCC3 STACKABLE_CC SCC2
attr SCC3 rfmode HomeMatic

updating firmware

The makefile inside Device/SCC directory is prepared to flash new firmware by running:
make program

Make sure you press the mirco switch at the desired SCC module while starting the command.

Created by: tostmann last modification: Monday 14 of November, 2016 [18:46:42 UTC] by tostmann
