SCC - Stackable CC1101 w/ MPU for Raspberry Pi

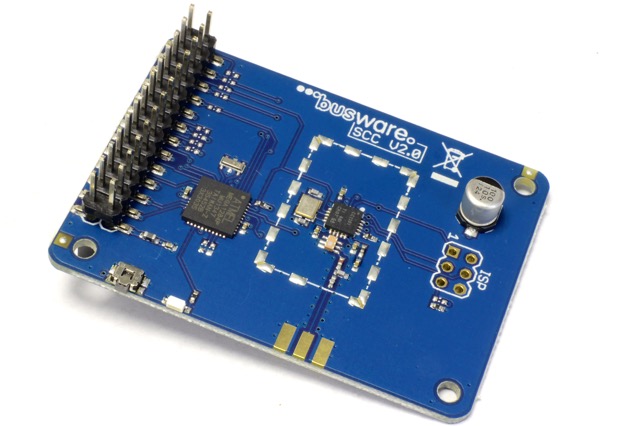

HAT-like shaped V2 board

General

This module adds multiple CC1101 RF transceivers to your Raspberry PI. The contained ATMEL processor chains the serial port and may contain protocol specific firmware.

see:

Specs

  • hard- and software compatible with SCC V1 boards
  • direct mount onto all Raspberry Pi models
  • CC1101 radio frontend (433/868/915MHz) w/ m1284p co-processor
  • LED
  • Microswitch
  • avr109-bootloader support using USART
  • SCC occupies UART RX/TX- and GPIO17/18-Pins - all other pins are left untouched
  • on top you can add a final existing extensions COC, CCD etc.

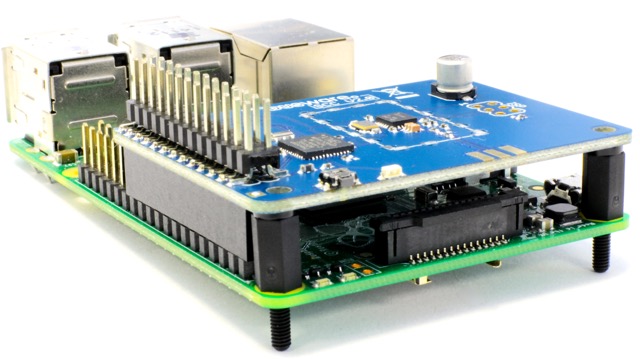

proper mounting with available mount kit

Documents

Application firmware for the SCC

Price and availability

This module is available in our shop starting 44 Euro (incl. VAT)

Acknowledgement

Raspberry Pi is a trademark of the Raspberry Pi Foundation
