COC a CC1101-OneWire-Clock extension for Raspberry Pi

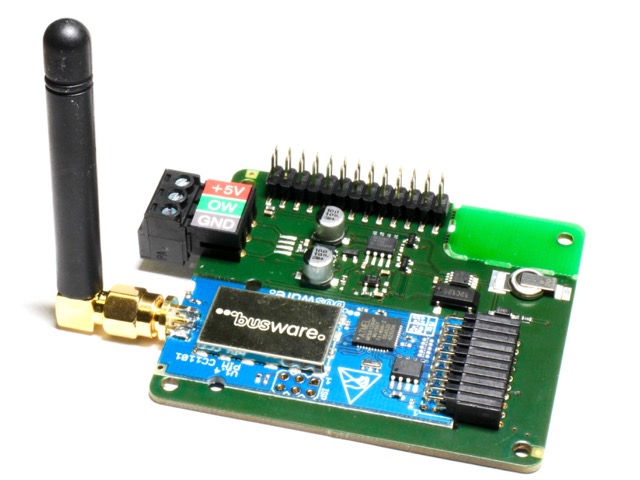

plugged extension board

End-Of-Life

The COC will retire soon. Its replaced by either Pigator Onewire & CC1101 radio, or if you just looking for a standalone CC1101 transceiver use SCC extension!

General

This page is still under construction!
- see image gallery
- or design animation @ YouTube

Specs

  • direct mount onto Raspberry Pi module
  • CC1101 radio frontend (433/868/915MHz) w/ m1284p co-processor
  • RP-SMA socket
  • DS1338 RTC @ I2C - w/ SuperCap backup
  • LED
  • DS2482-OneWire @ I2C w/ 5V Levelshifter & strong pullup @ RJ10-4P4C
  • 5V power connector (Mating Plug Diameter: Inner 1,35 mm, Outer 3,5 mm)

Onewire

Front view plug / Stecker von vorn

3-yellow (+5V - 350mA fused) / 4-green (OW return) / 5-red (OW) / 6-black_or_white (GND)

Documents

patched Linux for the RPi

Firmware for the COC

Price and availability

This module is no longer available in our shop - you may use a SCC extension instead

Acknowledgement

Raspberry Pi is a trademark of the Raspberry Pi Foundation

Created by: tostmann last modification: Saturday 28 of March, 2015 [08:24:34 UTC] by tostmann
