CCD2 Installation

Mounting

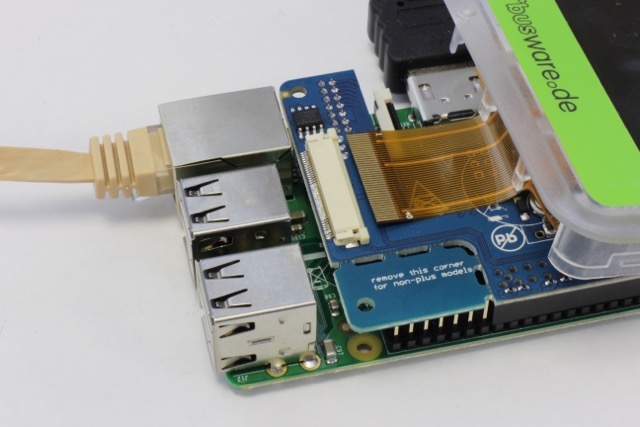

  • Display:
display cable contacts facing up!!

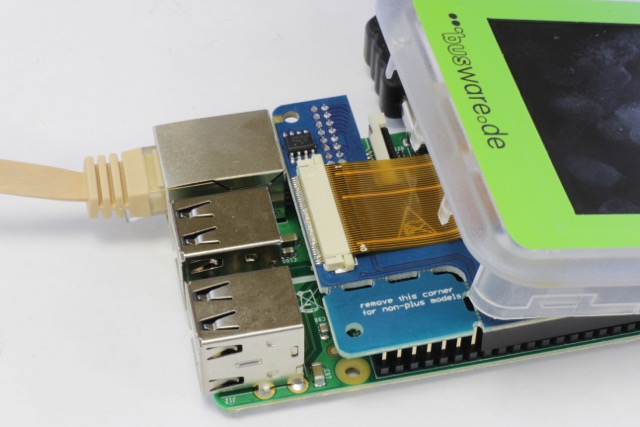

inserted FPC cable

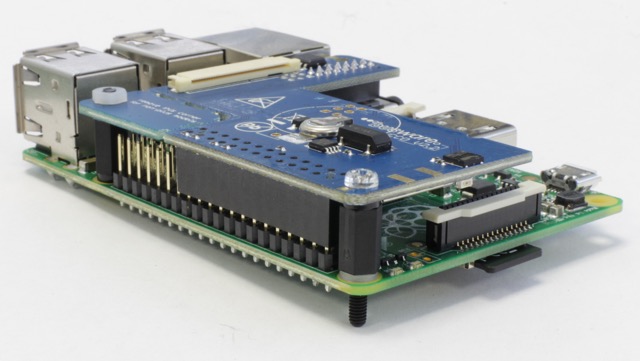

  • stacking PCBs.
the enclousure has threaded mount points to screw-in the black distance holders

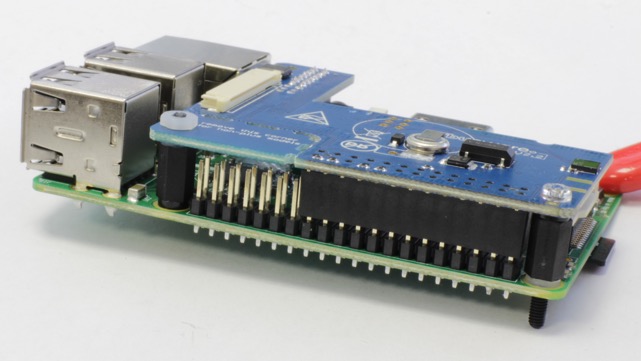

be aware of the small gab (1mm) at the GPIO header

preparing Raspberry system files

Use an up-to-date image i.e. Raspbian - download
  • remove any reference to ttyAMA0 inside /boot/cmdline.txt and /etc/inittab
  • add to /boot/config.txt
dtparam=spi=on
dtparam=i2c=on
dtoverlay=ads7846:cs=1,speed=2Mhz,penirq=25,penirq_pull=0,xmin=200,ymin=200,xmax=3900,ymax=3900,pmin=0,pmax=255,xohms=60,swapxy=0

  • add to /etc/modules
spi-bcm2708
i2c-bcm2708
i2c_dev
fbtft_device
ads7846

  • create file /etc/modprobe.d/fbtft.conf
options fbtft_device custom name=fb_ili9341 dma=1 buswidth=8 speed=48000000 gpios=reset:23,dc:24,led:22 rotate=90 bgr=1 cs=0

  • reboot

Display

to test the display do:
fbcp &
omxplayer movie.avi

Further instructions here

Touchscreen

to test the touch screen do:
evtest /dev/input/event0

Further instructions here

RTC clock

add to /etc/rc.local
echo ds1307 0x68 > /sys/class/i2c-adapter/i2c-1/new_device
sleep 1
hwclock -s

remove fake-RTC:
apt-get remove fake-hwclock
rm /etc/cron.hourly/fake-hwclock
update-rc.d -f fake-hwclock remove
rm /etc/init.d/fake-hwclock
update-rc.d hwclock.sh enable


LIRC

The IR-receiver is connected to GPIO4

FHEM

start radio chip by:
if test ! -d /sys/class/gpio/gpio17; then echo 17 > /sys/class/gpio/export; fi
echo out > /sys/class/gpio/gpio17/direction
echo 1 > /sys/class/gpio/gpio17/value

add to fhem.cfg:
define CSM CUL /dev/ttyAMA0@38400 0000


Firmware update

You must stop FHEM before doing:
make -C /path-to-local-GIT-clone/culfw/Devices/CCD2 program
