CC1101 - Clock - Display for Raspberry Pi

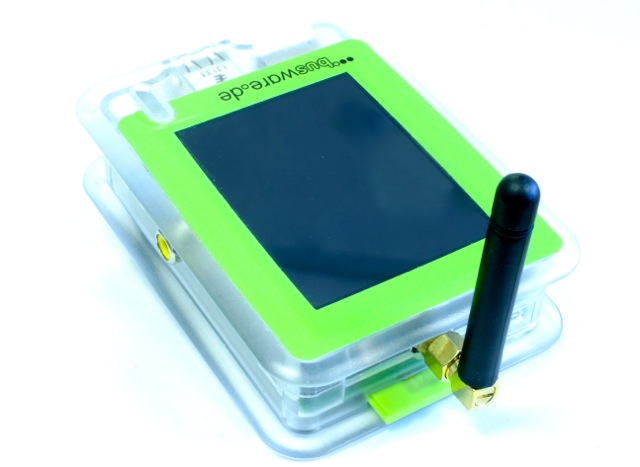

CCD with case and shorten microSD adapter

This device has been re-designed! check out: CCD version 2

General

give your Pi a "face" ...

see image gallery or YouTube:

Specs

  • CC1101 transceiver w/ co-processor m1284p with culfw/Contiki - optional ISP header
  • ILI9341 based 2.8" TFT Display (240x320) with touchscreen (ADS7846)
  • full Linux X11-support
  • DS1338-RealTimeClock with SuperCAP energy storage
  • UMFT200XD-like I2C breakout
  • LIRC supported IR receiver (must use transparent case!)

Documents

References

useful:

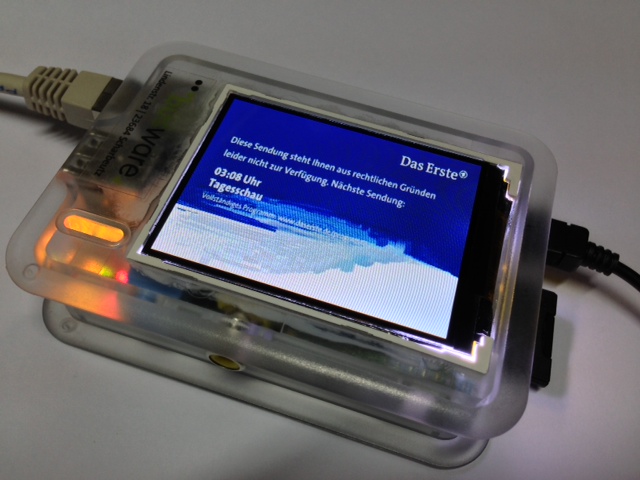

  • watch ARD TV live stream:
mplayer -nolirc -vo fbdev2:/dev/fb1 -vf scale=320:-3 http://daserste_live-lh.akamaihd.net/i/daserste_de@91204/master.m3u8

transparent case


Created by: tostmann last modification: Monday 20 of April, 2015 [23:58:04 UTC] by tostmann
