CC1101 w/ co-processor shield for Arduino

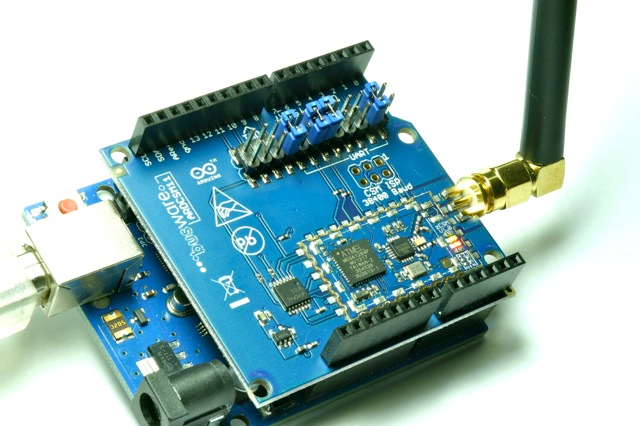

mounted shield with RP-SMA socket and antenna

General

End-Of-Life

This shield allows you to control all actors and sensors of either FS20, MAX!, Homematic, etc. - supported by http://culfw.de

- see image gallery

Specs

  • direct mount onto UNO/MEGA w/ sandwich connectors
  • CSM m1284p, CC1101@868MHz with culfw - optional ISP header
  • using serial communication by either Soft- or Real-UART port selectable by jumpers (RX at digital pins 8,9,10,11 - TX at digital pins 2,3,4,5)

Sketches

Application

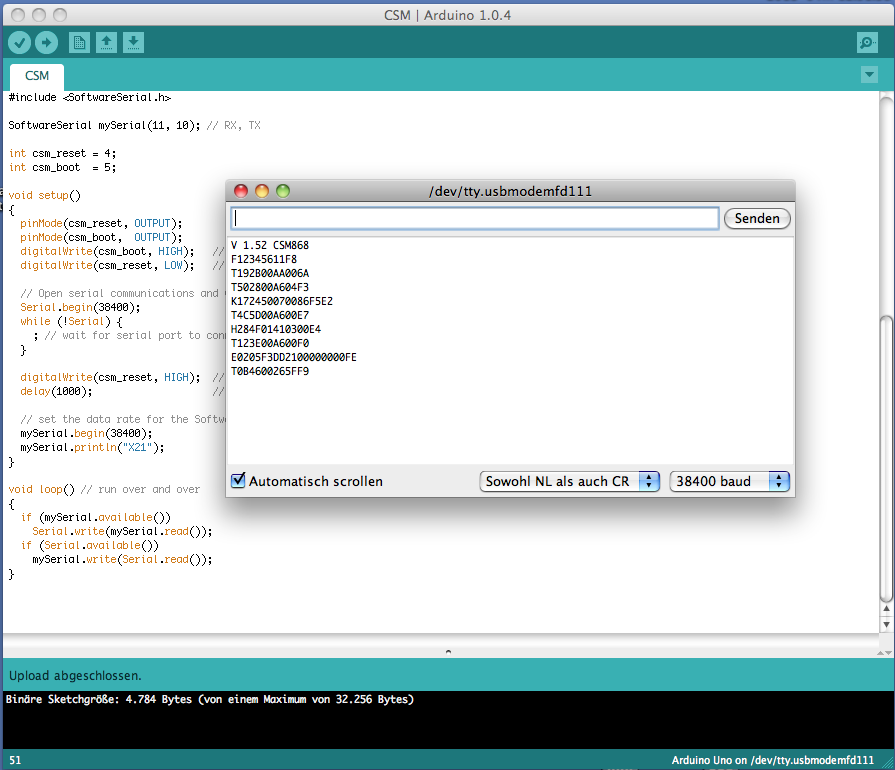

simple command forward

Availability

The shield is no longer available in our shop

Created by: tostmann last modification: Thursday 02 of January, 2014 [09:47:37 UTC] by tostmann
